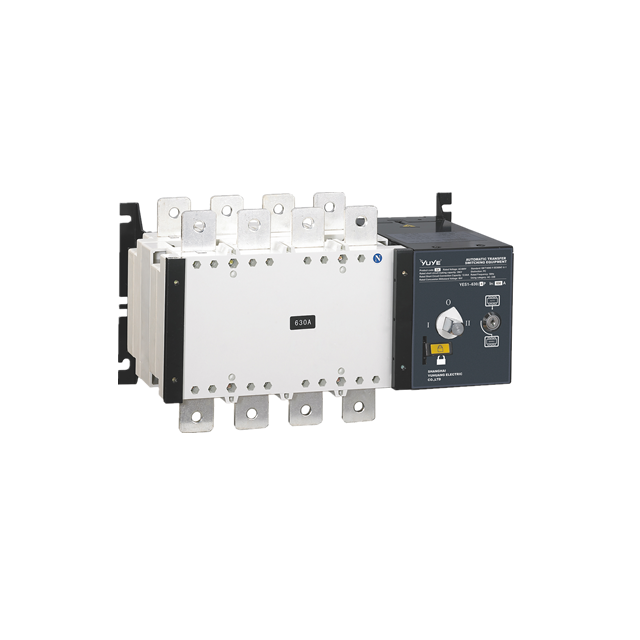

PC Automatic transfer switch YES1-630G

Lead Time:

Quantity(Pieces)	1 - 100	>100
Est. Time(days)	7	To be negotiated

Customization::               Customized logo(Min. Order: 100 Pieces)

              Customized packaging(Min. Order: 100 Pieces)

              Graphic customization(Min. Order: 100 Pieces)

Share To

Product details

Model

YES1-G

Rated current(lth)

630

Rated working current(le)

315A,350A,400A,500A,630A

Rated insulation voltage(Ui)

690V

Rated concussion withstand voltage(Uimp)

8Kv

Rated working voltage(Ue)

AV400V

Using classes

AC-33B

Rated limited shortcircuit current

26KA

Rated short-time withstand current

12.6kA/30ms

Transfer Ⅰ——Ⅱor Ⅱ——Ⅰ

0.6s

Control power voltage

DC24V,80V,110V、AC220V

Rated frequency

Start

355W

Normal

74W

Weight(kg)4 pole

15.8(315A,350A);16.8

Name	Content
Enterprise code	Shanghai Yuhuang electric co.,ltd
Product category	PC class Automatic Transfer Switch
Design code	1
Current rank	NA/N/C:32A,125A,250A,400A,630ASA/S/LA/L:125A,250A,630AG:100A,250A,630A,1600A,3200AM:1600A AQ:3200A
Product code	NA:16A~630A(Integral type,two positions)N:16A~630A(Split type,two positions)C:16A~630A(Split type,two positions)M:630A~1600A(Split type,two positions)Q:630A~3200A(Split type,two positions)SA:20A~630A(Integral type,Three positions)S:20A~630A( Split type,Three positions)LA:20A~630A(Integral type,Two positions)L:20A~630A(Split type,two positions)G:GA:16A~3200A(With fire protection function)GA1:16A~100A(Without fire protection function)
Pole	2P(125A and below 125A products),3P,4P
Rated current	16A~3200A
Working mode	R=Self-input and self-recoverS=Self-input without self-recoverF=Utility-Generator
