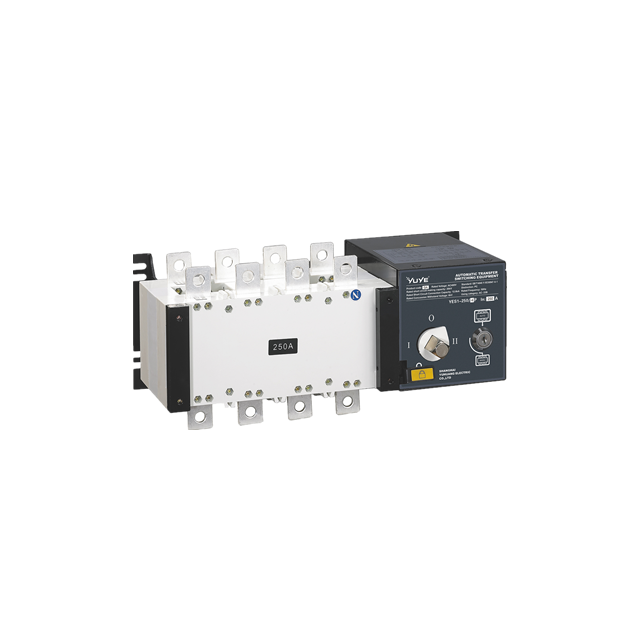

PC Automatic transfer switch YES1-250G
  1. The largest manufacturer of ATS in China
  2. High quality standard enterprise supplier,Nader,GE, Siemens supplier
  3. Quickly lead times:Both of us ”Time is gold” ,7*20 hours online service
  4. Professional team,Research and development, design, production
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Customization:
              Customized logo(Min. Order: 100 Pieces)
              Customized packaging(Min. Order: 100 Pieces)
              Graphic customization(Min. Order: 100 Pieces)
Get A Free Quote
PDF Download
  • Description
  • Tags

  • Product details

    Model YES1-G

    Rated current(lth)

    250

    Rated working current(le)

    		 125A,160A,200A,225A,250A

    Rated insulation voltage(Ui)

    690V

    Rated concussion withstand voltage(Uimp)

    8Kv

    Rated working voltage(Ue)

    AV400V

    Using classes

    AC-33B

    Rated limited shortcircuit current

    17KA

    Rated short-time withstand current

    10kA/30ms

    Transfer Ⅰ——Ⅱor Ⅱ——Ⅰ

    0.6s

    Control power voltage

    DC24V,80V,110V、AC220V

    Rated frequency

    Start

    		 325W

    Normal

    62W

    Weight(kg)4 pole

    		 6.0(125A);7.6
    Name Content
    Enterprise code Shanghai Yuhuang electric co.,ltd
    Product category PC class Automatic Transfer Switch
    Design code 1
    Current rank NA/N/C:32A,125A,250A,400A,630ASA/S/LA/L:125A,250A,630AG:100A,250A,630A,1600A,3200AM:1600A AQ:3200A
    Product code NA:16A~630A(Integral type,two positions)N:16A~630A(Split type,two positions)C:16A~630A(Split type,two positions)M:630A~1600A(Split type,two positions)Q:630A~3200A(Split type,two positions)SA:20A~630A(Integral type,Three positions)S:20A~630A( Split type,Three positions)LA:20A~630A(Integral type,Two positions)L:20A~630A(Split type,two positions)G:GA:16A~3200A(With fire protection function)GA1:16A~100A(Without fire protection function)
    Pole 2P(125A and below 125A products),3P,4P
    Rated current 16A~3200A
    Working mode R=Self-input and self-recoverS=Self-input without self-recoverF=Utility-Generator

    YES1-400N-1



    YES1-400N-2
