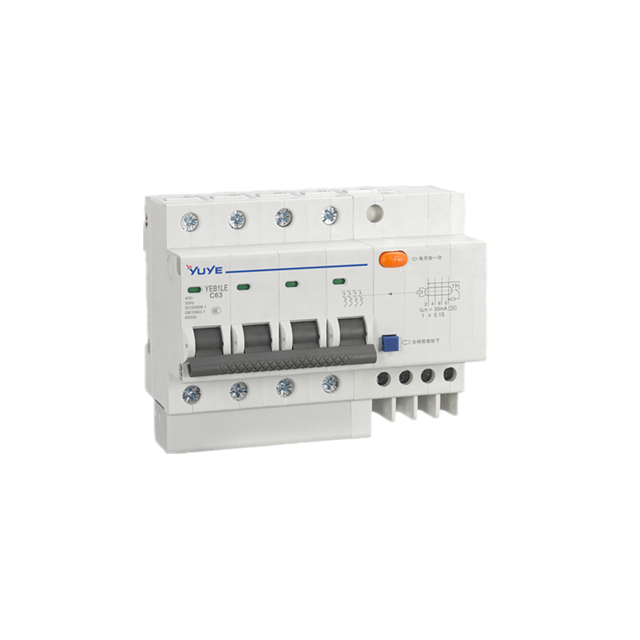

Miniature circuit breaker YUB1LE-63/4P

Earth Leakage Circuit Breaker

Lead Time:

Quantity(Pieces)	1 - 100	101 - 500	501 - 1000	>1000
Est. Time(days)	5	7	10	To be negotiated

Customization:: Customized packaging(Min. Order: 5000 Pieces)

Customized logo(Min. Order: 100 Pieces)

Get A Free Quote

PDF Download

Share To

Description
Tags

Product details

Name	Details
Enterprise code	Shanghai Yuhuang Electric Co.,ltd
Product category	Miniature Circuit Breaker
Design code	1
Function code	Electronic type residual current protection function
Current rank	63A
Pole	1P,1p+N,2P,3P,3P+N,4P
Neutral pole	+N
Using code	C=Light distribution,D=Motor protection
Rated current	3A~63A
Residual initiating current	30,50,100,300

Technical parameter

Rated voltage(V)	Rated frame graded current Inm (A)	Pole	Neutral	Rated current(A)	Rated leakage operate current I△n(mA)	Rated no leakage operate current I△no(mA)	Rated leakage operate time(s)
230	63	1	+N	3,6,10,16,20 32,35,40,50, 63	30,(50), (100), (300)	15,(25),(50), (150)	≤0.1
230/400		2
230/400		3	+N
230/400		3
230/400		4

Remark:

1. Wiring with clamp terminal,hardwire can be connect to 25 mm² and below.
2. Notice:Rated residual current of 30mA or less indirect protection or personal saretyfeatures,but not simultaneously contact the two wires leakage protection at the same time.
