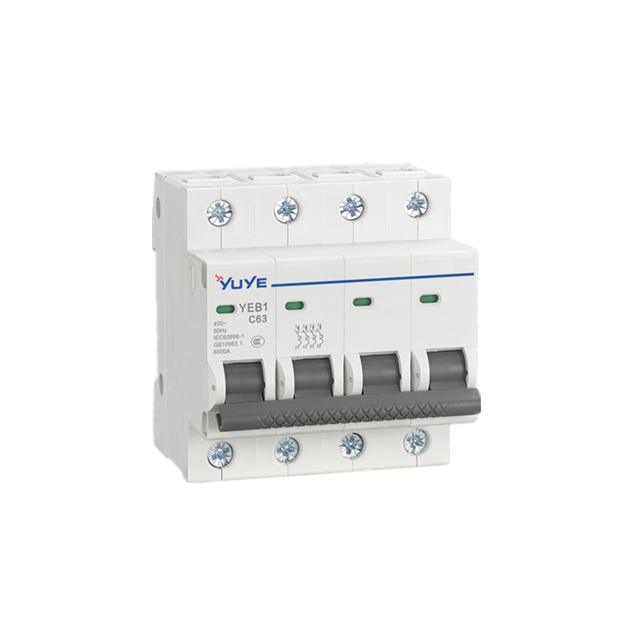

Miniature circuit breaker YUB1-63/4P

Lead Time:

Quantity(Pieces)	1 - 100	101 - 500	501 - 1000	>1000
Est. Time(days)	5	7	10	To be negotiated

Customization:: Customized packaging(Min. Order: 5000 Pieces)

Customized logo(Min. Order: 100 Pieces)

Share To

Product details

Name	Details
Enterprise code	Shanghai Yuhuang Electric Co.,ltd
Product category	Miniature Circuit Breaker
Current rank	63A
Pole	1P
Using code	C=Light distribution,D=Motor protection
Rated current	3~63A

Rated current(A)	Pole	Rated voltage(V)	Rated short circuit breaking capacity (A)		Power factor	Mechanical life(times)
3,6,10,16,20,25,32，40，50，63	1P+N	230/400	6000		0.65~0.70	20000

Remark:

1. Electrical life:4000 cycles.
2. Antihumid head type:II(The temperature is 55 degrees,the ralative humidity is 95%).

3.Wiring with clamp terminal.cross-section of cable can be up to 25 mm².
